Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap

Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap

  • Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap
  • Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap
  • Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap
Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: MIROC BR Series Button Bit
Model numarası: DTH Düğme Bit
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Adet DTH Düğme Bit
Fiyat: Negotiation
Ambalaj bilgileri: Karton kutu veya ahşap kutu
Teslim süresi: 10-20 GÜN
Ödeme koşulları: L / C, T / T, MoneyGram, Western Union
Yetenek temini: Aylık 20000 adet
İletişim
Detaylı ürün tanımı
Ürün adı: :
Çapı: Renk:
Vurgulamak:

karbür matkap uçlu

,

dth button bits

BR Series DTH Button Bit 64mm 70mm 76mm 95mm for BR1 BR2 BR3 DTH Hammer



1'' 2'' Middle Air Pressure DTH Bits



DTH Button Bits for BR1, BR2, BR2 Hammer.



BR Series DTH Button Bit Specification



1'' 2'' Middle Air Pressure DTH Bits
DTH Button Bit Diameter Buttons and Size (mm) Flushing hole Weight
mm inch Gauge Front kg
BR1 64 2 1/2 6x10 3x10 2 2.6
70 2 3/4 6x12 4x9 2 2.8
76 3 6x13 5x10 2 3.2
BR2 64 2 1/2 6x13 5x10 2 3.6
70 2 3/4 6x13 5x11 2 4.0
76 3 6x14 5x12 2 4.2

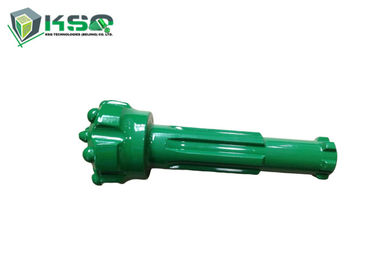

BR2 76mm DTH Button Bit Photos:



Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap 0



Product: DTH Button Bit



Diameter: 76mm



Bit Shank: BR2



Face Design: Convex



Button/Carbide Type: Spherical



Button Number and Diameter: 4x10mm front, 6x13mm gauge



Flushing Holes: 2 front flushing holes



Weight: 4.2kg per piece



Color: Green



More Photos:



Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap 0

Orta Hava Basıncı BR1 BR2 BR3 Çekiç DTH Düğme Uçları 64mm 70mm 76mm Çap 0



Bit Face Shape Selection:



Center Drop Bit:

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.

Maximum hole deviation control.

Concave Face

The all-around application bit face specifically for medium hard and homogenerous rock formations.

Good hole deviation control and good flushing capacity.

Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.

Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.

Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.



Competitive Advantage

• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment



We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



Applications

• Underground mining

• Down the hole rock drilling



KSQ Related DTH Button Bits

Product DTH Button Bits
Low Air Pressure CIR80, CIR90
3’’ DHD3.5, M30,
4’’ DHD340, SD4,QL40, M40
5’’ DHD350, SD5,QL50, M50
6’’ DHD360, SD6,QL60, M60
8’’ DHD380, SD8,QL80, M80
Color Green, Gold, Black or based on customer requirements.
MOQ: No MOQ required for testing and trial order
