Name: HQ PQ Diamond Impregnated Core Drill Bit for Exploration Coring Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: HQ PQ
Price: 508.50 USD
Availability: InStock

Ana sayfa Ürünler Kaya Delme araçları

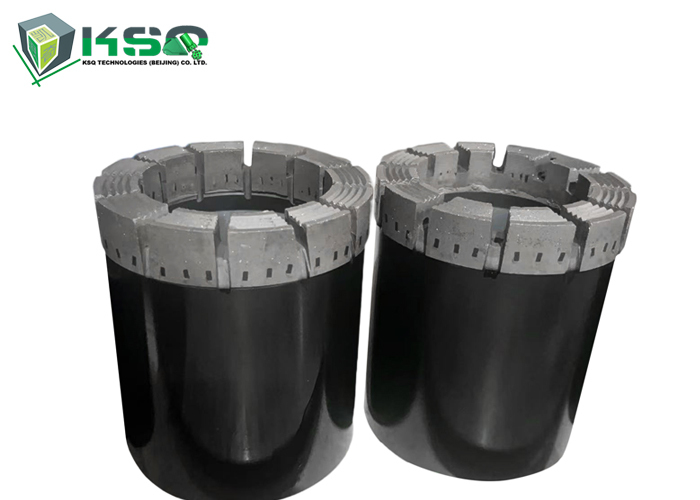

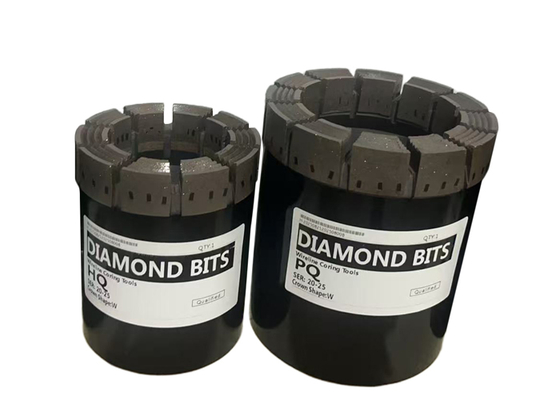

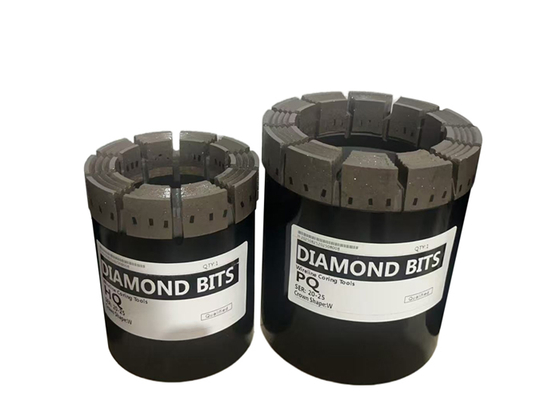

HQ PQ Diamond Impregnated Core Drill Bit for Exploration Coring Drilling

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	MIROC
Sertifika:	ISO
Model numarası:	HQ PQ

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Teslim süresi:	20-30
Yetenek temini:	3000

İletişim

Detaylı ürün tanımı

Model Hayır:	HQ, PQ,	Malzeme:	Elmas
Kullanım:	Kuyu sondajı, madencilik keşif sondajı	Özelleştirilmiş:	Standart veya özelleştirilmiş
Tip:	Çekirdek Matkap Ucu	Sanayi:	Jeolojik Etüt
Mülk:	Emprenye edilmiş	Bağlantı:	Erkek/kadın
Vurgulamak:	diamond impregnated core drill bit , exploration coring drill bit , rock drilling core bit with warranty

HQ PQ Diamond Impregnated Core Drill Bit for Exploration Coring Drilling

Product Specifications

Attribute	Value
Model NO	HQ, PQ
Material	Diamond
Usage	Well Drilling, Mining Exploration Drilling
Customized	Standard or Customized
Type	Core Drill Bit
Industry	Geological Survey
Property	Impregnated
Connection	Male/Female

Product Description

Impregnated diamond core bits are widely used in mining and geological surveys for drilling into hard rock formations. These core bits are designed to provide efficient and precise drilling in challenging conditions.

Diamond Impregnation: Manufactured by embedding industrial-grade diamonds into a matrix of metal powder and binder, ensuring even distribution for consistent cutting performance.
Hard Rock Drilling: Primarily used for drilling into hard rock formations like granite, basalt, and limestone where conventional methods may struggle.
Cutting Efficiency: Diamond impregnation enables effective grinding through hard rock, with matrix material supporting diamonds and channeling away rock particles.
Core Recovery: Designed to maximize recovery of intact core samples for accurate geological analysis and ore reserve estimation.
Durability: Engineered to withstand high rotational speeds and abrasiveness, with lifespan varying by rock conditions and drilling techniques.
Water Cooling: Typically uses water as coolant and lubricant to reduce friction, remove cuttings, and prevent overheating.

Size Specifications

Size	Outside Diameter	Inside Diameter
AQ	1.880/1.870 Inch 47.75/47.50 mm	1.607/1.057 Inch 27.1/26.85 mm
BQ	2.350/2.340 Inch 59.69/59.44 mm	1.438/1.428 Inch 36.52/36.27 mm
NQ	2.970/2.960 Inch 75.44/75.19 mm	1.880/1.870 Inch 47.75/47.50 mm
HQ	3.770/3.755 Inch 95.76/95.38 mm	2.505/2.495 Inch 63.63/63.38 mm
PQ	4.815/4.795 Inch 122.30/121.80 mm	3.350/3.340 Inch 85.09/84.84 mm
