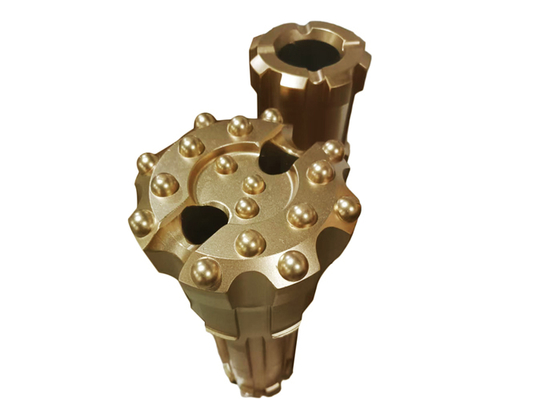

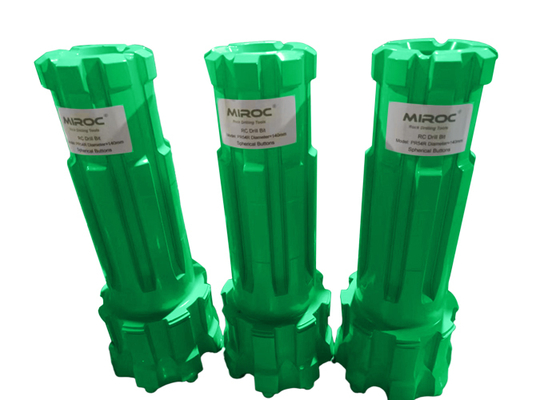

PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	MIROC
Sertifika:	ISO
Model numarası:	PR54R RC Çekiç Matkap Botu

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Teslim süresi:	20-30
Yetenek temini:	3000

İletişim

Detaylı ürün tanımı

Üretim süreci:	Dövme	Malzeme:	Alaşım çelik
Avantaj:	Yüksek performans	Renk:	Talep üzerine
Parça Adı:	DTH Matkap Uçları	Kullanım:	Delik Drlling
Vurgulamak:	RC hammer drill bit for DTH hammer , reverse circulation drill bit for rock drilling , PR54R RC hammer bit with warranty

PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer

Product Specifications

Attribute	Value
Manufacturing Process	Forging
Material	Alloy Steel
Advantage	High Performance
Color	Per Request
Parts Name	DTH Drill Bits
Usage	Hole Drilling

Product Description

RC series reverse circulation DTH Hammer is mainly used for deep exploration drilling and stope ore grade control. This reverse circulation drill bits are widely used in the following application fields:

Geologic exploration samples
Oil wells and ore mining

Specifically designed to work with RC Hammers.

Available Sizes

3" RC Bits: diameter (86mm-102mm), shank (RE531)
4" RC Bits: diameter (114mm-127mm), shank (RE004, RE004R)
4.5" RC Bits: diameter (121mm-133mm), shank (RE542, RE543)
5" RC Bits: diameter (113mm-146mm), shank (RE545, PR40)
5.5" RC Bits: diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)

Other sizes available upon customer request. Customization available.

Technical Specifications (PR54/54R)

Diameter mm	Diameter inch	No x Button diameter	Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	19.0	PR54-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	19.3	PR54-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	19.5	PR54-143
146	5 3/4	8 x 16mm	6x16+3x14	35	2	144	19.6	PR54-146
