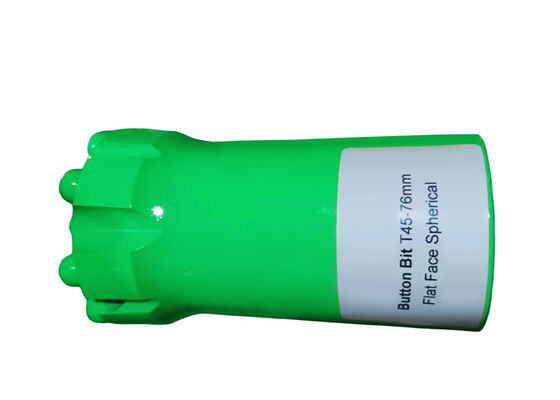

Name: Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T45-76MM
Price: 508.50 USD
Availability: InStock

Ana sayfa Ürünler Kaya Delme araçları

Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	MIROC
Sertifika:	ISO
Model numarası:	T45-76MM

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Teslim süresi:	20-30
Yetenek temini:	3000

İletişim

Detaylı ürün tanımı

Model no.:	T45-76MM	Yüzey tedavisi:	galvanizli
Anahtar kelime:	Düğme biti	Düğme Türü:	Küresel, Balistik, Konik
İplik türü:	T45	Renk:	talep üzerine
Vurgulamak:	T45 thread button drill bit , 76mm rock drilling bit , thread button rock drill tool

Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit

Description

Our thread button drill bit size from 33mm-178mm, include thread type R28, R32, R38, T38, T45, T51, ST58, ST68 etc for kinds of button bit, reaming button bit, retract button bit, drop centre retract button bit.

The button shapes of our button bits are spherical, ballitic, conical for customers to choose. The buttons can be hot insert to the body and welded to the body as per custmers need and many kinds of good materials are available.

Advantage

High Quality
Reasonable Price
High Efficiency
Delivery On Time

Application

The button bit is widely used for rock drilling, blasting holes and other drill works in quarries, coal mines, road and dam constructions and other similar projects.

Specification of button bits

Thread Button Bit	Diameter	Carbide size(mm)	Flushing hole	Weight (kg)
	mm \| in	Front \| Gauge	Front \| Side
		Qty×size \| Qty×size
R/T38 (1 1/2")	64 \| 2 1/2	3×11 \| 6×12	2 \| 1	1.62
	70 \| 2 3/4	4×10 \| 8×10	2 \| 1	1.98
	76 \| 3	4×11 \| 8×12	2 \| 1	2.28
	89 \| 3 1/2	6×11 \| 8×12	2 \| 2	3.32
T45 (1 3/4")	70 \| 2 3/4	4×10 \| 8×10	2 \| 1	2.24
	76 \| 3	4×11 \| 8×12	2 \| 1	2.46
	89 \| 3 1/2	6×12 \| 8×14	2 \| 2	3.52
	102 \| 4	7×12 \| 8×14	2 \| 2	4.46
	115 \| 4 1/2	8×12 \| 8×14	2 \| 2	6.68
T51 (2")	76 \| 3	4×12 \| 8×12	2 \| 1	3.62
	89 \| 3 1/2	6×12 \| 8×14	2 \| 2	4.48
	102 \| 4	7×12 \| 8×14	4 \| 1	5.26
	115 \| 4 1/2	8×12 \| 8×14	4 \| 1	7.62
	127 \| 5	9×12 \| 8×16	4 \| 1	8.58

Applications of rock drilling tools

Underground mining
Tunneling, quarrying

Competitive Advantage

High grade tungsten carbide inserts

Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
