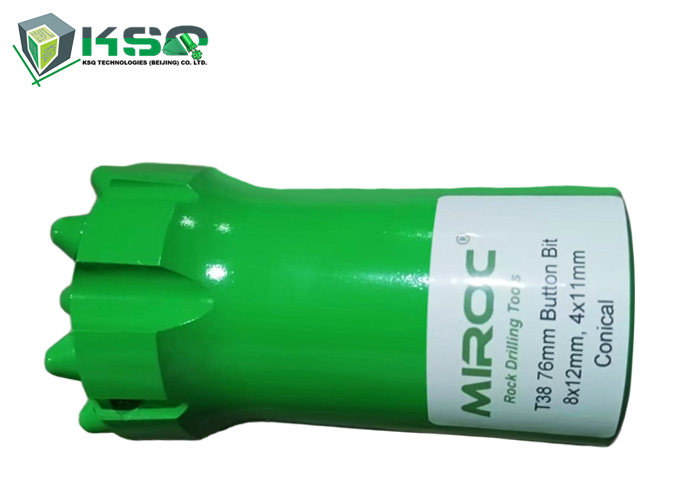

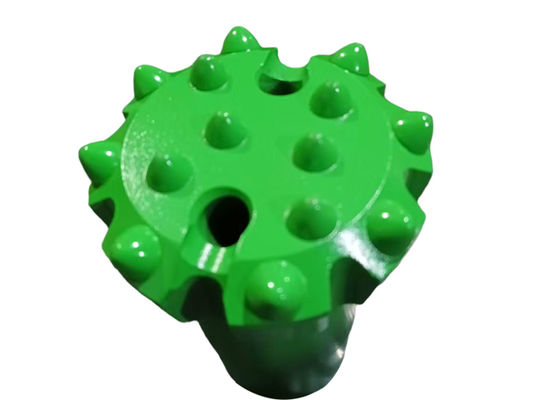

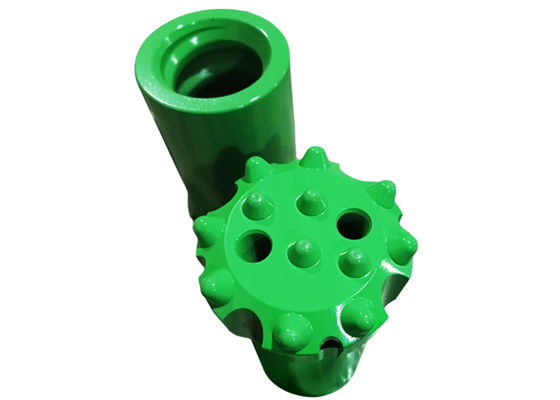

Name: T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38-76mm
Price: 508.50 USD
Availability: InStock

Ana sayfa Ürünler Kaya Delme araçları

T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	MIROC
Sertifika:	ISO
Model numarası:	T38-76mm

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Teslim süresi:	20-30
Yetenek temini:	3000

İletişim

Detaylı ürün tanımı

Ürün:	T38-76mm düğme ucu	Düğme şekli:	Balistik, Küresel, Kompozit düğmeler
Uygulama:	Tezgah sondajı, yeraltı üretim sondajı, uzun delik delme	Vücut:	Retrac Etek, Standart Etek
Anahtar kelimeler:	Kaya Delme Ucu	Kullanım:	Kaya delme
Vurgulamak:	T38-76mm Threaded Button Bit , Ballistic Buttons Rock Drill Bit , Spherical Buttons Tungsten Carbide Button Bit

T38-76mm Tungsten Carbide Threaded Button Bit

Product Description

Description: Threaded button bit

Raw material: Alloy steel and tungsten carbides

Thread: R25, R28, R32, R35, R38; T38, T45, T51, T60, ST58, ST68

Face: Flat front, drop center

Diameter: 35mm-127mm

Carbide: Ballistic, conical, spherical

Color: Customized

Application: Used to drill deep holes in underground mines, open pit mines, and tapholes

Customization: Thread, diameter, buttons number, button type, and flushing holes can be customized according to client's requirements and drawings

Key Features

Premium material with high-quality alloy steel and tungsten carbide from internationally renowned brands
Advanced heat treatment technology for high wear resistance
High toughness and wear resistance
Rich production experience and market feedback data from clients
Large capacity, stable quality, short lead time, competitive pricing

Specifications of Button Bits (T38)

Bit Dia. (mm)	Buttons and Size (mm)	Flushing Hole	Weight (kg)
64	3×10, 1×10 (Front) 6×11 (Gauge)	3 (Front)	1.7
70	3×10, 1×10 (Front) 6×12 (Gauge)	3 (Front)	1.8
76	3×11, 1×11 (Front) 6×12 (Gauge)	3 (Front) 1 (Side)	2.6
89	3×11, 2×11 (Front) 6×13 (Gauge)	3 (Front) 1 (Side)	3.3
