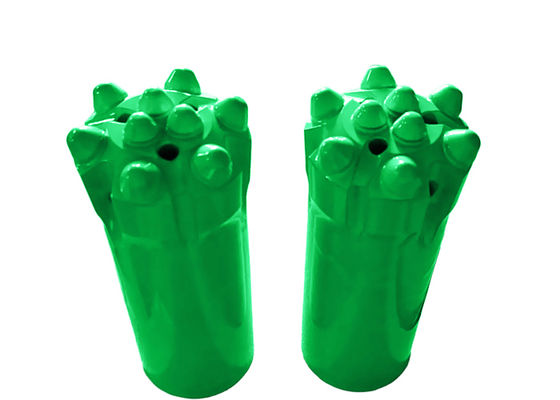

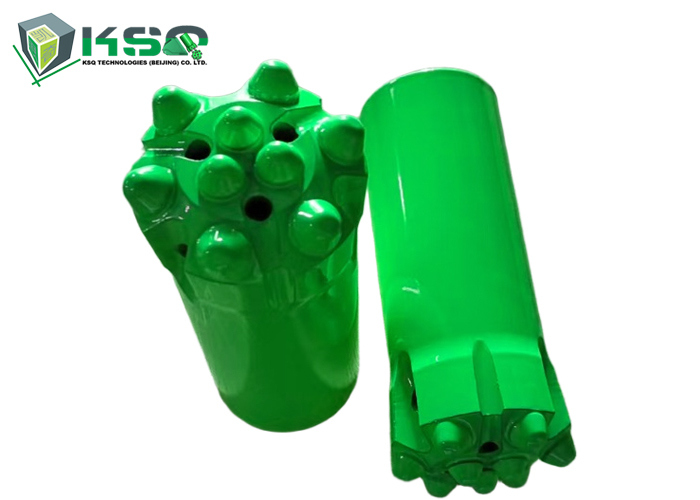

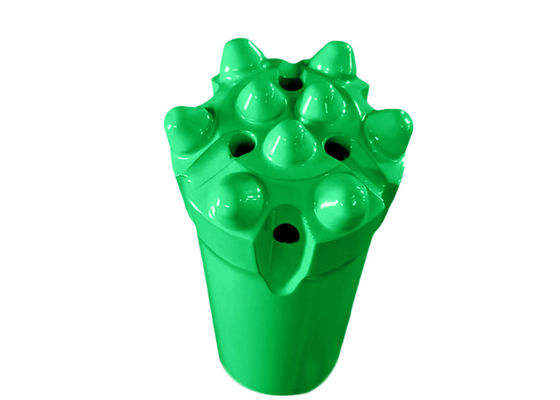

Name: R32 45mm Tungsten Carbide Thread Button Bit with Spherical Buttons and Retrac Design for Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
Price: 508.50 USD
Availability: InStock

Ana sayfa Ürünler Kaya Delme araçları

R32 45mm Tungsten Carbide Thread Button Bit with Spherical Buttons and Retrac Design for Rock Drilling

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Teslim süresi:	20-30
Yetenek temini:	3000

İletişim

Detaylı ürün tanımı

Yüzey işleme:	Sprey boyası	Uygulama:	Taş ocağı, İnşaat Projesi, Madencilik
Bit yüzü:	Düz, Bırakma merkezi	Satış personeli:	Profesyonel Satış Ekibi
Model numarası:	İplik Düğmesi Biti	Renk:	Özel
Vurgulamak:	Tungsten Carbide Thread Button Bit , Spherical Buttons Button Drill Bit , Retrac Design Rock Drill Bit

R32 45mm Mining Top Hammer Rock Drill Thread Button Bit for Rock Drilling

The R32 45mm button bit is designed for drifting and tunneling applications, representing one of our most popular rock drill bits. Available in configurations with either 9 or 7 carbide button tips, these bits come in two main variants: spherical button drill bits and ballistic button bits, distinguished by their button shape.

Spherical button drill bits are the industry standard for rock drilling. When used with hydraulic rock drills providing sufficient impact power, they deliver superior energy efficiency. The spherical carbide buttons offer exceptional strength and wear resistance, resulting in optimal rock breaking performance.

Our R32 spherical button drill bits provide excellent penetration performance in medium-hard rock, hard rock, and various other rock formations.

Specifications of Retrac Button Bits

Part Number	Product Code and Description	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
4148300521	R945-R32-S, R32 Retrac Button Bit, Spherical Buttons	45	1 7/9	3x8	6x9	40°	3	-	1.1
4148300522	R948-R32-S, R32 Retrac Button Bit, Spherical Buttons	48	1 8/9	3x9	6x10	30°	3	-	1.2
4148300523	R951-R32-S, R32 Retrac Button Bit, Spherical Buttons	51	2	3x9	6x10	30°	3	-	1.4
4148300524	R948-R32-S, R32 Retrac Button Bit, Spherical Buttons	64	2 1/2	3x10, 1x10	6x11	35°	3	-	2.2
4148300525	R1264-R32-S, R32 Retrac Button Bit, Spherical Buttons	64	2 1/2	4x10	8x10	40°	2	-	2.2
4148300526	R1376-R32-S, R32 Retrac Button Bit, Spherical Buttons	76	3	4x11, 1x11	8x11	35°	4	1	3.5
4148300609	R948-R32-S, R32 Retrac Button Bit, Spherical Buttons	48	1 8/9	3x8	6x10	40°	3	-	1.2
4148300610	R951-R32-S, R32 Retrac Button Bit, Spherical Buttons	51	2	3x9	6x10	35°	3	-	1.4
