Name: PQ Locking Coupling Adapter for Diamond Core Drilling with High Manganese Steel for Long Life
Brand: KSQ Technologies (Beijing) Co. Ltd
Price: 508.50 USD
Availability: InStock

Ana sayfa Ürünler Kaya Delme araçları

PQ Locking Coupling Adapter for Diamond Core Drilling with High Manganese Steel for Long Life

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Teslim süresi:	20-30
Yetenek temini:	3000

İletişim

Detaylı ürün tanımı

Tip:	PQ kilitleme bağlantısı	Makine Tipi:	Sondaj Aracı
Malzeme:	Yüksek manganlı çelik	İşleme Türü:	Döküm
Kullanmak:	Madencilik	Başvuru:	Elmas çekirdek sondaj
Avantaj:	Uzun ömür
Vurgulamak:	High Manganese Steel Locking Coupling , Diamond Core Drilling Adapter Coupling , Long Life Core Barrel Assembly

PQ Locking Coupling Adapter for Wireline Core Barrel Assembly

KSQ offers a comprehensive selection of locking couplings, essential components located on the upper section of the outer tube in core barrel assemblies. The locking coupling serves multiple critical functions: adapting the core barrel outer tube to drill rods, securing the head assembly to the outer tube to ensure synchronized rotation during drilling operations, and stabilizing the upper section of the core barrel to minimize hole deviation.

Certain locking coupling variants also provide additional protection for hole diameter integrity in scenarios where the reaming shell loses its gauge. Proper selection based on ground conditions is crucial for optimal drilling performance.

Locking Coupling Types

Conventional Locking Coupling

This full-hole size coupling features tungsten carbide pads for enhanced stabilization. Ideal for ground conditions where minimal deviation is anticipated.

Hexagonal Locking Coupling

Also classified as a full-hole coupling, the hexagonal design incorporates 4-6 circumferential sections that provide excellent stabilization. When used with a full-hole outer tube, this coupling effectively controls bore hole deviation by stabilizing the core barrel assembly.

Heavy Duty Locking Coupling

Engineered for demanding applications, this coupling features a robust matrix pad body embedded with tungsten carbide grit, complemented by additional tungsten carbide pads. This construction delivers superior stabilization for the core barrel in challenging drilling conditions.

Specifications

Q Series

AQ, BQ, NQ, PQ (Front end & Back end Type)

T Series

T36, T46, T56, T66, T76, T86

T2 Series

T2 56, T2 66, T2 76, T2 86, T2 101

T6 Series

T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

WF Series

HWF, PWF, SWF, UWF, ZWF

WT Series

RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)

WG Series

EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube)

WM Series

EWM, AWM, BWM, NWM

For additional specifications and technical details, please contact our technical support team.

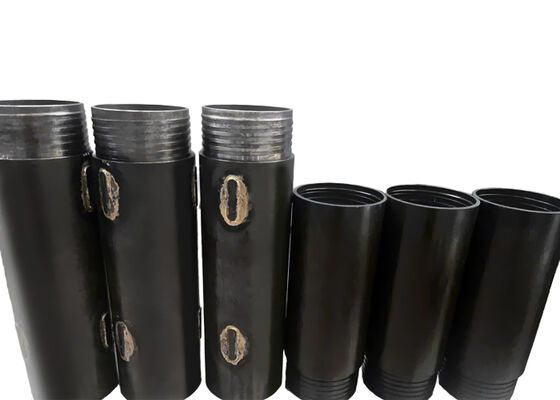

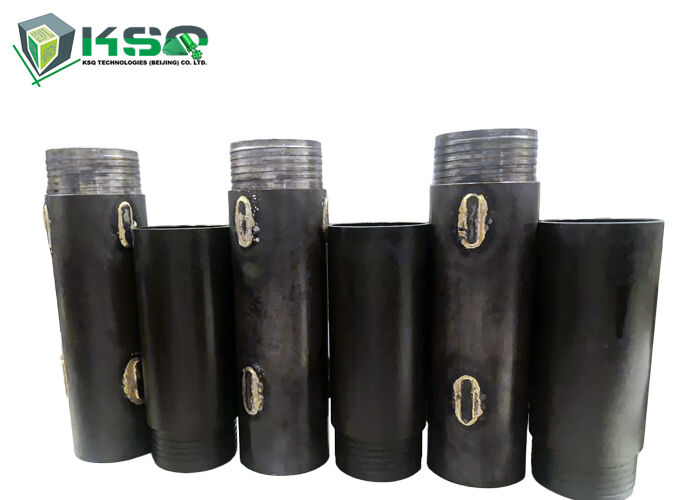

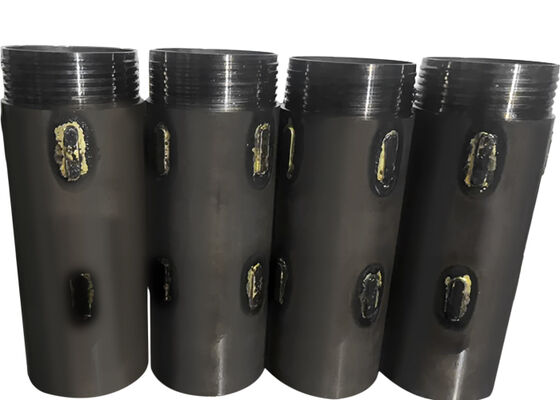

Product Images
