Name: High Quality R32 1.5m Female Female Thread Drill Rod For Drifter Rock Drilling Rig Tools Mining
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R32
Price: 75 USD
Availability: InStock

Ana sayfa Ürünler Kaya Delme araçları

High Quality R32 1.5m Female Female Thread Drill Rod For Drifter Rock Drilling Rig Tools Mining

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	MIROC
Sertifika:	ISO
Model numarası:	R32

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	$75
Teslim süresi:	20-30
Ödeme koşulları:	L/C,D/A,D/P,T/T,Western Union
Yetenek temini:	3000

İletişim

Detaylı ürün tanımı

Model NO.:	R32	Üretim Süreci:	Dövme
Malzeme:	Karbon Çelik	Çap:	22,25,28,32,38,45,51,60mm
Kullanmak:	Kömür madenciliği, taş ocağı sondajı veya kuyu delme	Transfer etmek:	HAVA/DENİZ/Ekspres
Renk:	Rica etmek	Avantaj:	Yüksek Performans
Konu Türü:	R25,R32,T38,T45,T51,Gt60	Hs Kodu:	82071990
Vurgulamak:	R32 female female thread drill rod , 1.5m drill rod for drifter , mining rock drilling rig tools

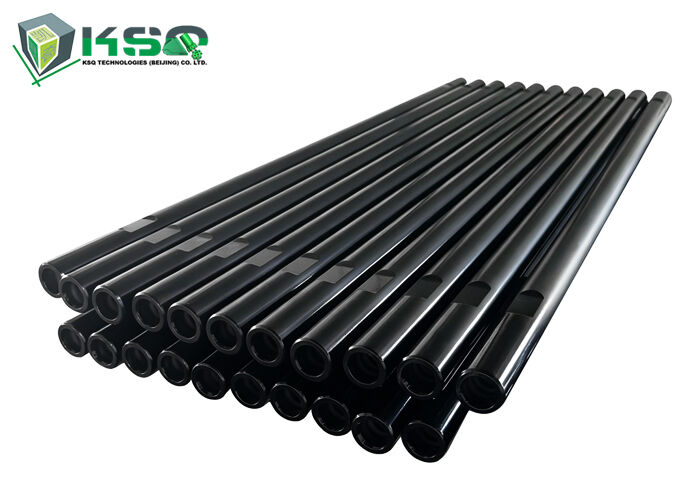

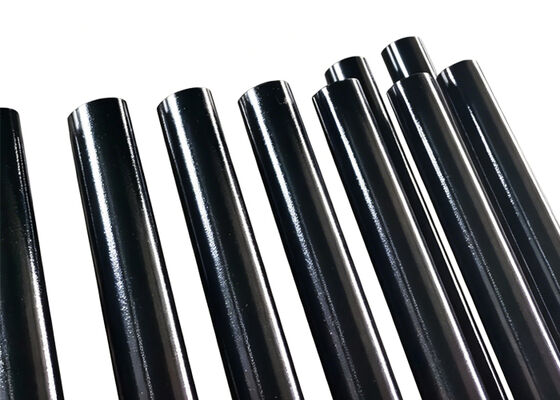

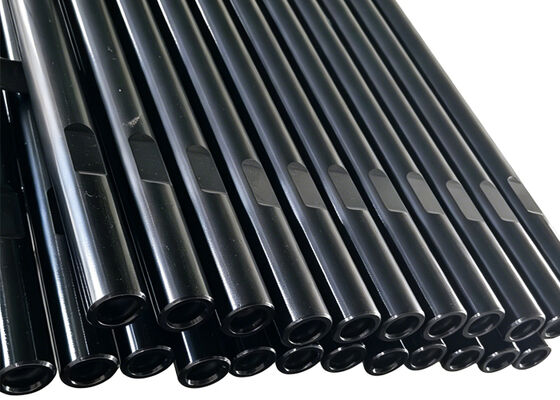

R32 1.5m Female-Female Thread Drill Rod for Drifter Rock Drilling

This precision-engineered R32 drill rod features double female threads on both ends, designed specifically for extension applications between male-threaded components in drifter drilling systems. Manufactured from high-quality alloy steel with advanced heat treatment, it delivers exceptional strength, wear resistance, and reliable performance in demanding drilling operations.

Technical Specifications

Rods Dimension	Length	Driven Thread	Suitable Bits Thread	Drilling Hole Range
Hex.25	915-3700 mm (3-12 ft)	610-1220 mm (2-4 ft)	R25, R28, R32	33-51 mm (1 19/64-2 in)
Hex.28	2100-4920 mm (6 3/4-16 ft)	1220-3050 mm (4-10 ft)	R28, R32, R38	37-51 mm (1 29/64-2 in)
Hex.32	2400-5530 mm (7 7/8-18 ft)	-	R28, R32, R38, T38	40-64 mm (1 37/64-2 1/2 in)
Round32	915-4310 mm (3-14 ft)	915-4270 mm (3-14 ft)	R32, R38, T38	45-64 mm (1 3/4-2 1/2 in)
Hex.35	2670-6100 mm (8 5/8-20 ft)	3700-6400 mm (12-21 ft)	R32, R38, T38	45-76 mm (1 3/4-3 in)
Round39	610-6095 mm (2-20 ft)	610-6095 mm (2-20 ft)	R38, T38, T45	57-89 mm (2 1/4-3 1/2 in)
Round46	1830-6095 mm (6-20 ft)	1525-6095 mm (5-20 ft)	T38, T45, T51	70-102 mm (2 3/4-4 in)
Round52	3050-6095 mm (10-20 ft)	1525-6095 mm (5-20 ft)	T45, T51	76-127 mm (3-5 in)

Key Features

Double Female Design - Connects two male-threaded components seamlessly
Precision Thread - R32 threads machined to strict tolerances for secure connection
High Strength - Forged alloy steel construction for maximum torque transmission
Wear Resistant - Advanced heat treatment for extended service life
Easy Installation - Simple thread-on design for fast rod changes

Applications
